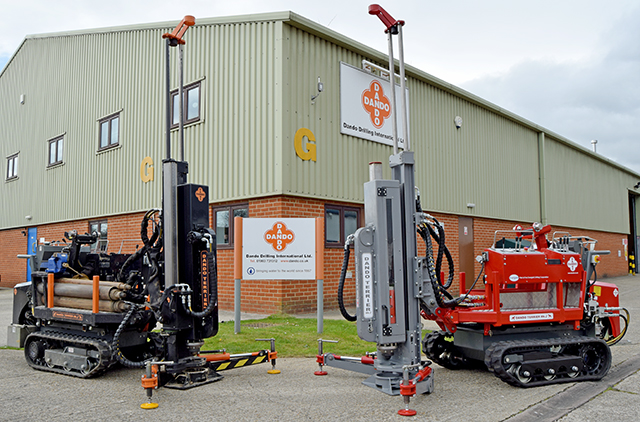

With a range of new features “for increased productivity, safety and ease of use, the compact, versatile Dando Terrier MK2 has been designed specifically for site investigation and environmental analysis,” the company says. Crawler mounted for easy access to areas of restricted access, the rig boasts the following features and options:

– 300mm hydraulic mast dump

– Trip hammer auto-stop

– Trip hammer swings out from drill line at any height

– Capable of tripping out multiple rods

– Drill string is supported by a stainless steel rod guide

– New split weight design. 63.5kg reduced to 50kg with the removal of 8 bolts

– Single piece drive adapter

– Swing-out pullback ring

– Revised control console

– Lightweight, folding stabiliser legs

– Mast automatically locks into headache post with no additional pins

Options:

– Fixed wide track kit extends width of carrier to 1000mm from 800mm

– Single hydraulic foot clamp

– Hydraulic stabilising legs

– SPT blow counter with illuminated display

– Remote mast kit

– Lighting

– Various engine options

– Hydraulic power take off

– Radio remote control

– Concrete coring head

– Vice options

– Lift off storage baskets

– SPT calibration
